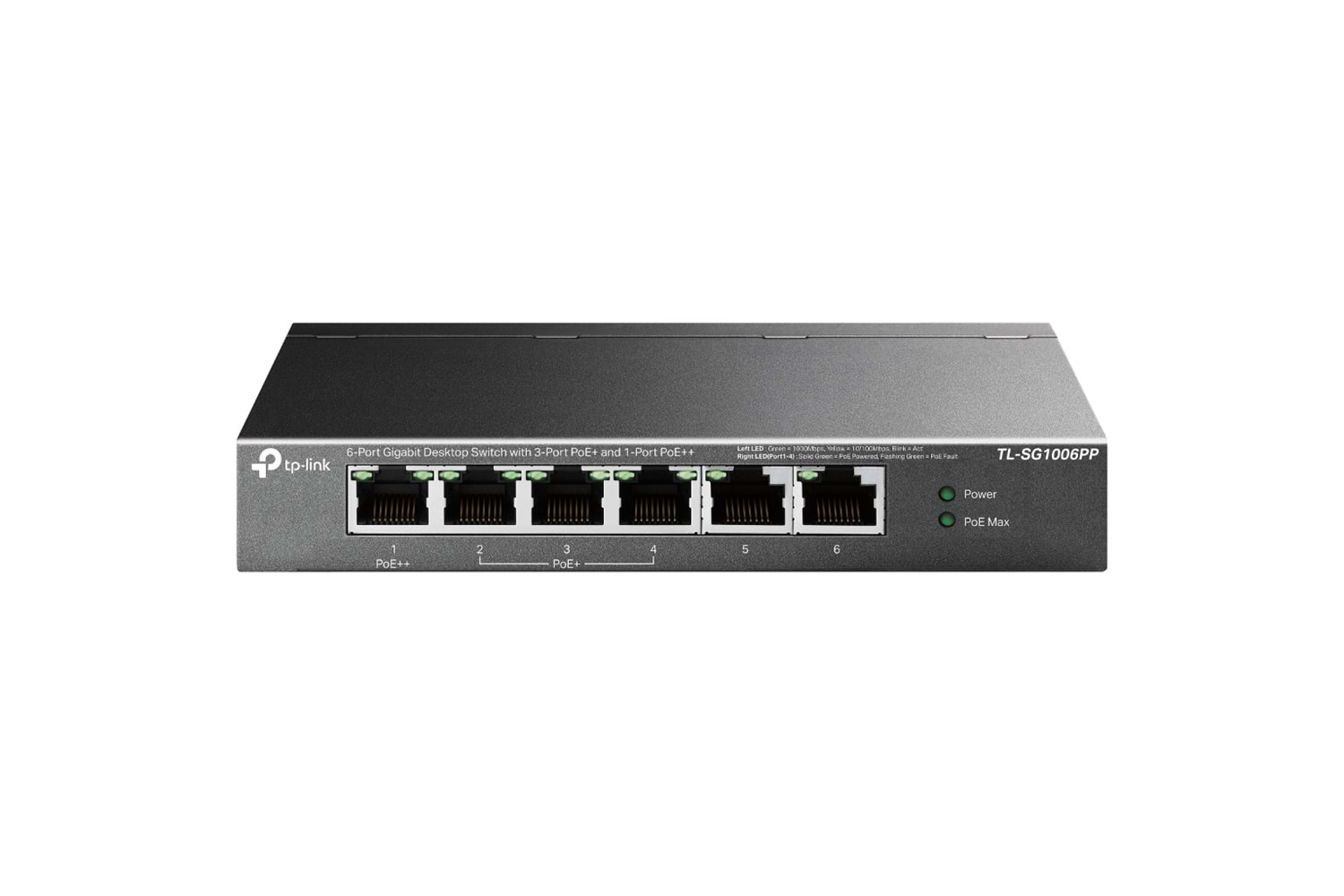

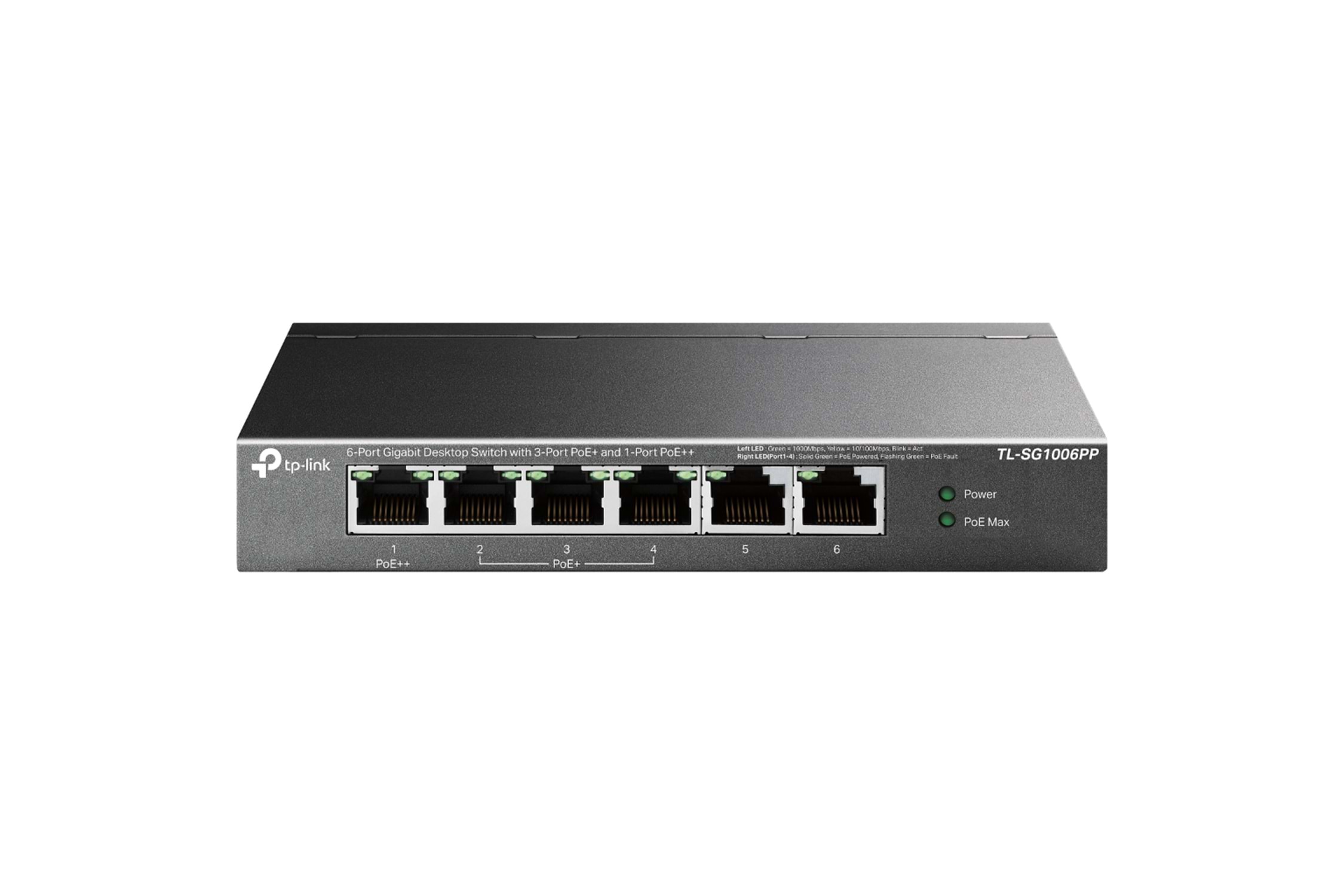

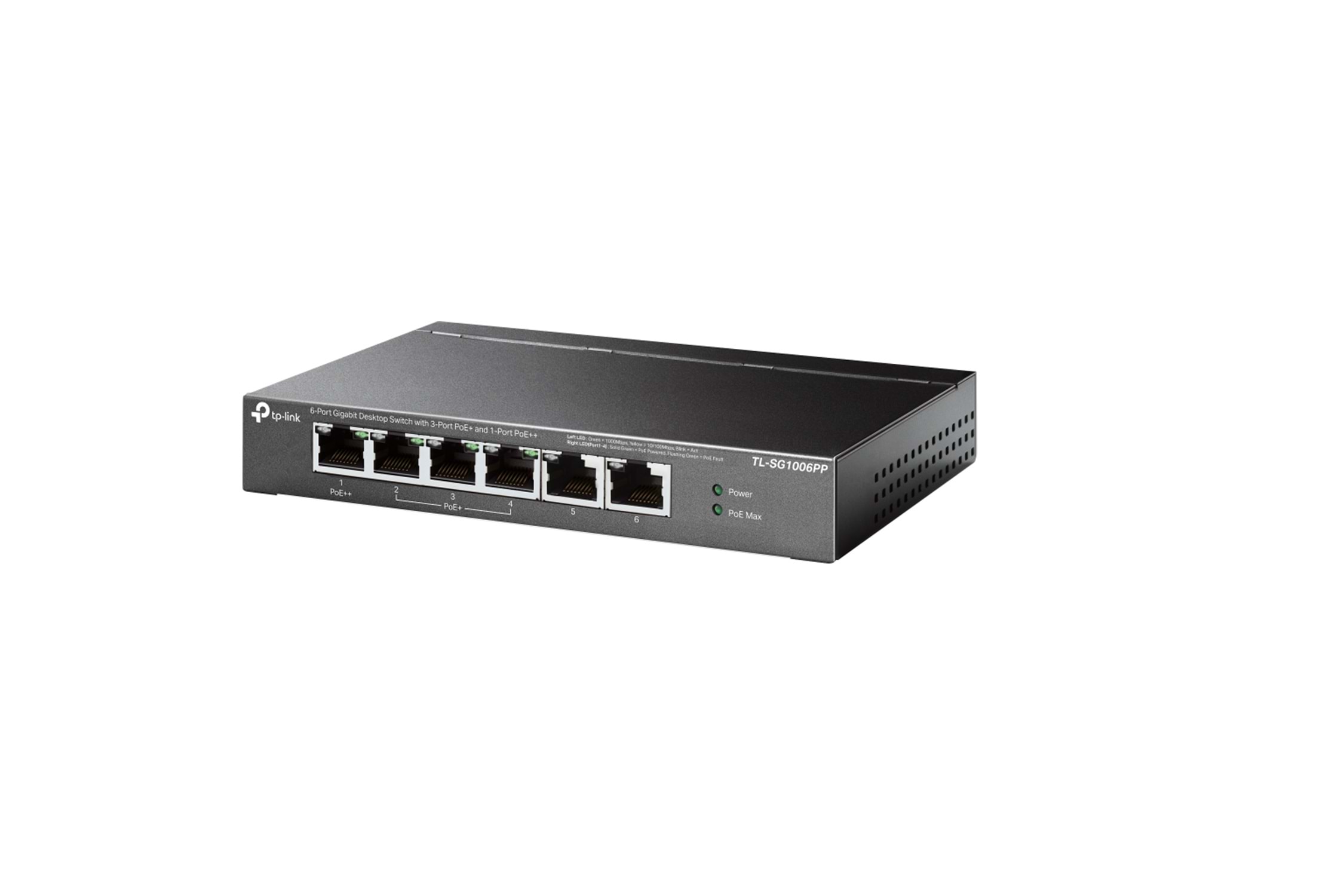

| Arabirim | • 6× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
|
|---|
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
| Fan Sayısı | Fanless |
|---|
| Harici Güç Kaynağı | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
|---|
| Paket Yönlendirme Hızı | 8.928 Mpps |
|---|
| PoE Portları (RJ45) | • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
• Power Supply: 64 W
|
|---|
| MAC Adres Tablosu | 4K |
|---|
| Switching Kapasitesi | 12 Gbps |
|---|
| Boyutlar ( W X D X H ) | 6.2x4.0x1.0 in (158x101x25 mm) |
|---|
| Maks. Güç Tüketimi | • 4.75 W (220/50 Hz. no PD connected)
• 71.46 W (220/50 Hz. with 64 W PD connected) |
|---|
| Max Heat Dissipation | • 16.20 BTU/h (220/50 Hz. no PD connected)
• 243.68 BTU/h (220/50 Hz. with 64 W PD connected) |
|---|
