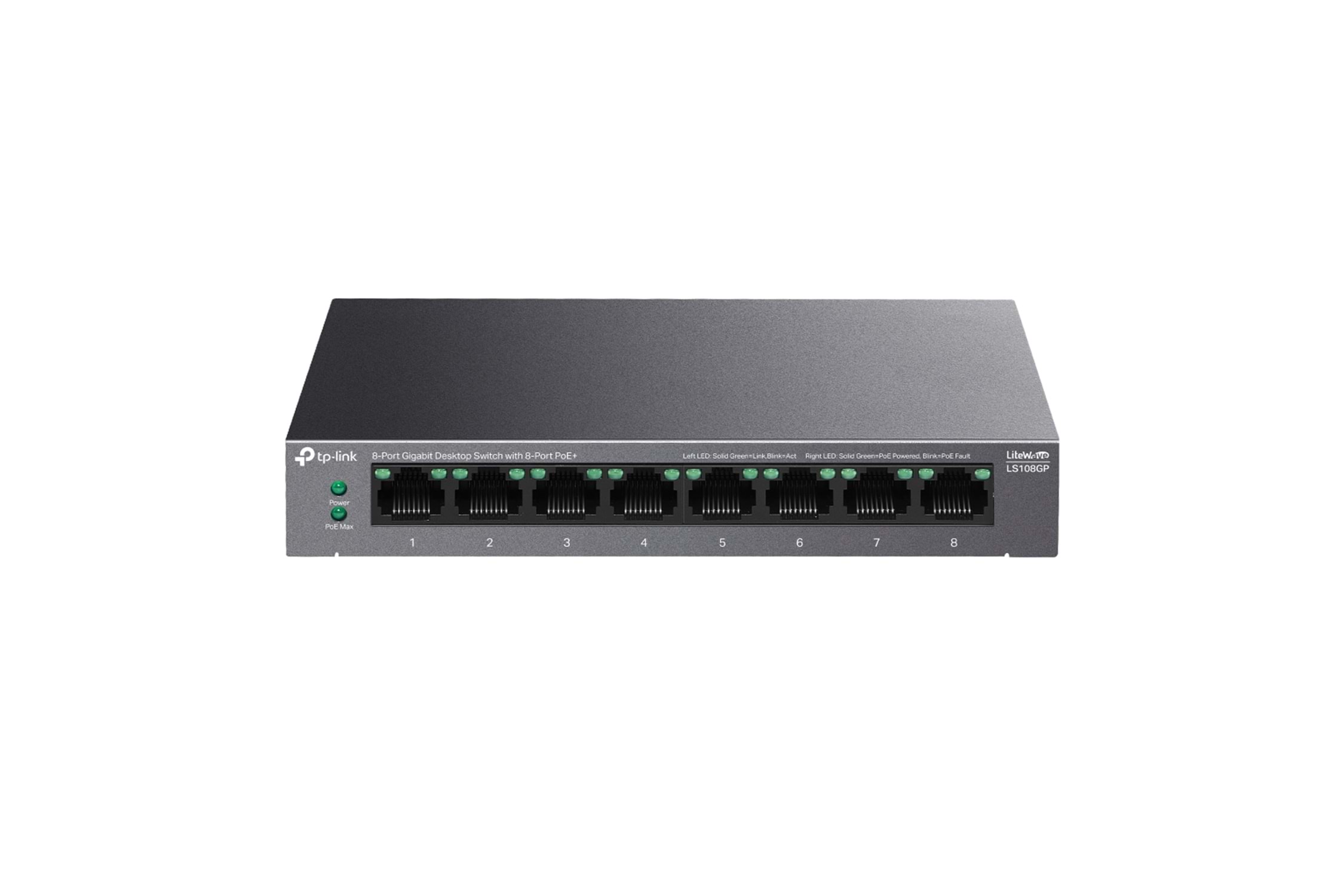

| Arabirim | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
|
|---|
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
|
|---|
| Fan Sayısı | Fanless |
|---|
| Kurulum | • Desktop
• Wall Mounting |
|---|
| Güç Kaynağı | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
|---|
| PoE Portları (RJ45) | • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Budget: 62 W
|
|---|
| Boyutlar ( W X D X H ) | 6.2×3.9×1.0 in (158×99×25 mm) |
|---|
| Maks. Güç Tüketimi | • 5.53 W (220 V/50 Hz. no PD connected)
• 71.61 W (220 V/50 Hz. with 62 W PD connected) |
|---|
| Max Heat Dissipation | • 18.81 BTU/h (220 V/50 Hz. no PD connected)
• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
|---|
