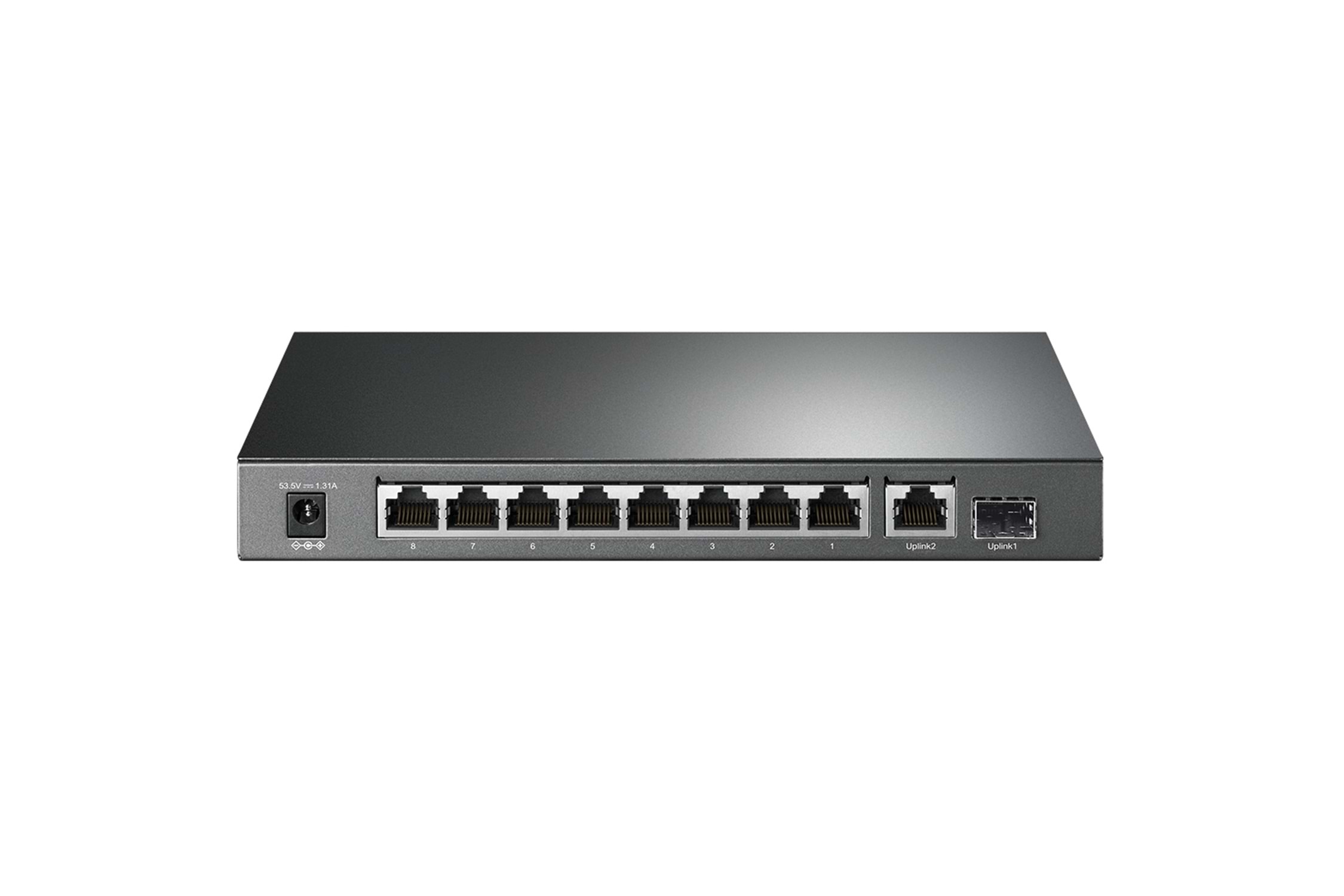

| Arabirim | 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot |
|---|
| Ağ Medyası | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
|---|
| Fan Sayısı | Fanless |
|---|
| Fiziksel Güvenlik Kilidi | Yes |
|---|
| Güç Kaynağı | External Power Adapter(Output: 53.5VDC / 1.31A) |
|---|
| Backup Bandwidth | 20 Gbps |
|---|
| Paket Yönlendirme Hızı | 14.88 Mpps |
|---|
| PoE+ Portları (RJ45) | Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W |
|---|
| MAC Adres Tablosu | 4K |
|---|
| Jumbo Frame | 16 KB |
|---|
| Switching Kapasitesi | 20 Gbps |
|---|
| Boyutlar ( W X D X H ) | 209 × 126 × 26 mm |
|---|
| Maks. Güç Tüketimi | 7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected) |
|---|
| Max Heat Dissipation | 24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected) |
|---|
