| DONANIM ZELLİKLERİ | |
|---|---|
| Standartlar ve Protokoller | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p |

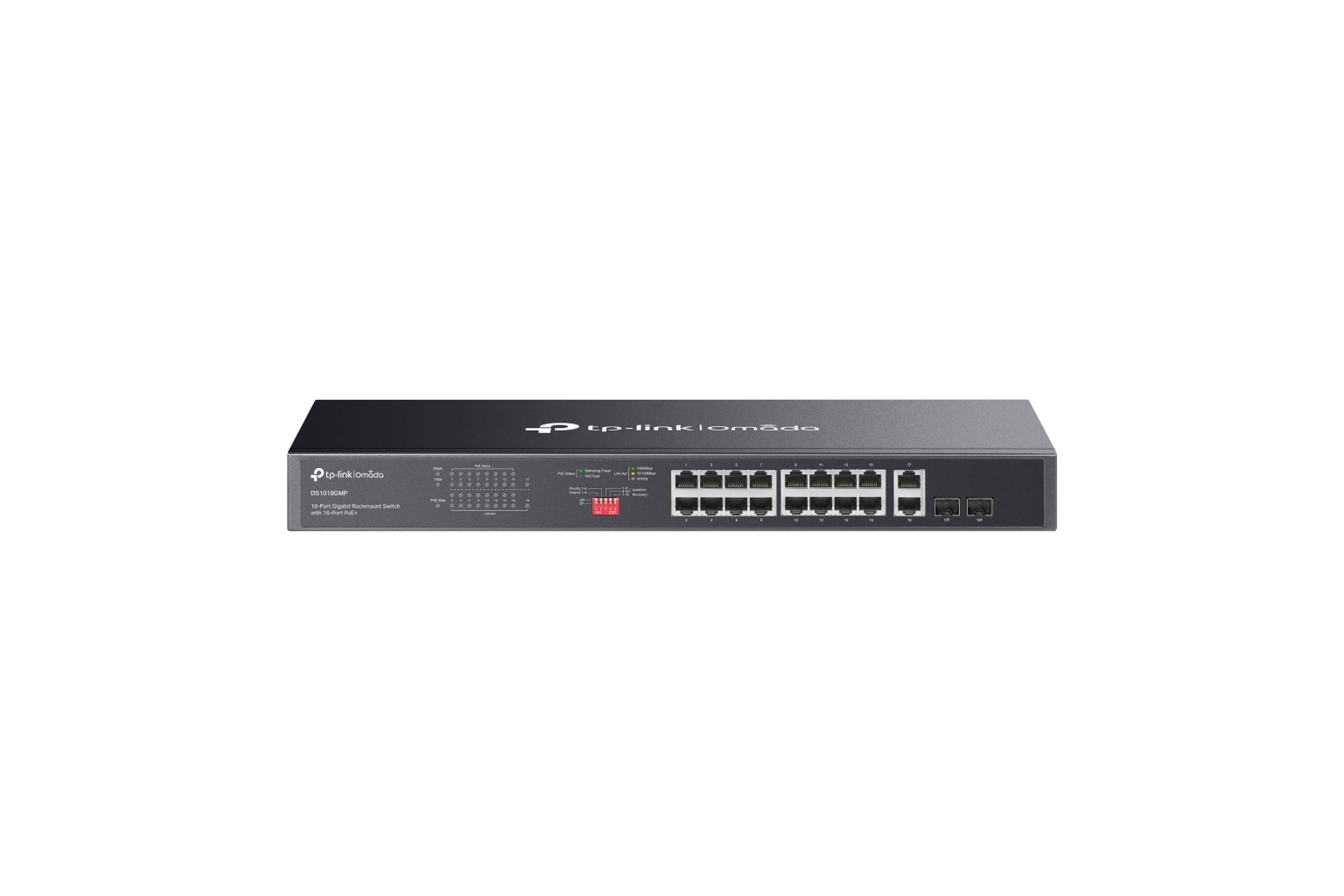

| Arabirim | • 16× 10/100/1000 Mbps PoE+ RJ45 ports • 2× Combo Gigabit SFP slots |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Sayısı | 2 |
| Fiziksel Gvenlik Kilidi | Yes |
| G Kaynağı | 100–240 VAC, 50/60 Hz |
| PoE Portları (RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Boyutlar ( W X D X H ) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
| Montaj | Rack Mountable |
| Maks. G Tketimi | • 19 W (220/50 Hz. no PD connected) • 293.34 W (220/50 Hz. with 250 W PD connected) |
| Max. Heat Dissipation | • 64.79 BTU/h (no PD connected) • 1000.29 BTU/h (with 250 W PD connected) |
| PERFORMANS | |
|---|---|
| Anahtarlama Kapasitesi | 36 Gbps |
| Paket Ynlendirme Hızı | 26.78 Mbps |
| MAC Adres Tablosu | 8K |
| Paket Buffer Belleği | 4.1 Mbit |
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4** • Priority Mode: Ports 1–4 • Isolation Mode: Ports 1-8/9-16 • PoE Auto Recovery: Ports 1-16 • Mac Address Auto-Learning and Auto-Aging • 802.1p/DSCP QoS • IEEE802.3x Flow Control |
| Jumbo Frame | 10 KB |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS |
| Paket İeriği | • DS1018GMP • Installation Guide • Power Cord • Rackmount Kit • Rubber Feet |
| Ortam | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
